Screen printing
Screen Exposure 5-in-1
Five screen-room operations in one system.
A combined screen preparation system for printing workflows.
Configured around your material, process and production needs.
- Functions
- Five integrated operations
- Published exposure
- Up to 100 dpi
- Mobility
- Castor-mounted
The technology, explained
Five screen-room operations in one system.

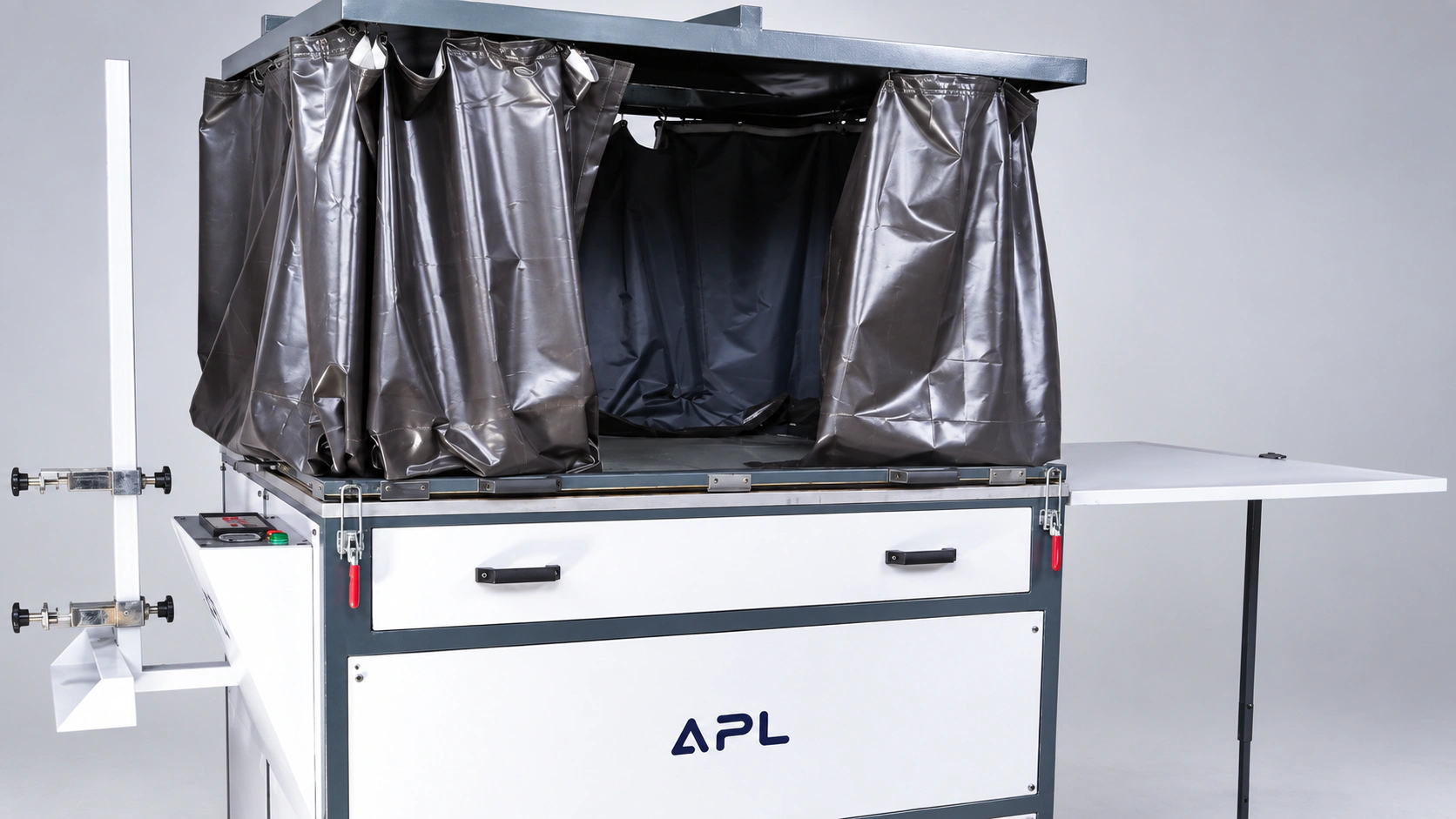

01 — OVERVIEWThe Screen Exposure 5-in-1 combines screen exposure, drying, inspection, emulsion coating and mechanical fabric stretching in one compact unit. It is designed to organise several preparation tasks within the screen-printing department.
A castor-mounted arrangement allows movement within the department. APL describes exposure up to 100 dpi and availability in two sizes. Confirm the screen dimensions and intended stencil detail so the selected configuration fits your screen-room process.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Screen inspection
Use the integrated inspection function as part of screen preparation.
Coating and stretching
An emulsion stand with trough and mechanical fabric stretcher are included.
Compact department layout
Combine five preparation operations in a mobile, space-conscious arrangement.
Product configuration
| Configuration detail | Published product profile |
|---|---|
| Functions | Five integrated operations |
| Published exposure | Up to 100 dpi |
| Mobility | Castor-mounted |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Screen exposure
- Screen drying and inspection
- Emulsion coating
- Fabric stretching
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Material shape, dimensions and printable area
- 02Artwork detail, colour count and registration needs
- 03Screen dimensions, ink and drying or pretreatment process
