Three stated print areas
The source identifies three formats within the pillar screen-printing range.
APL / 31
APPLICATION-LED ENGINEERING01 / 01
Screen printing

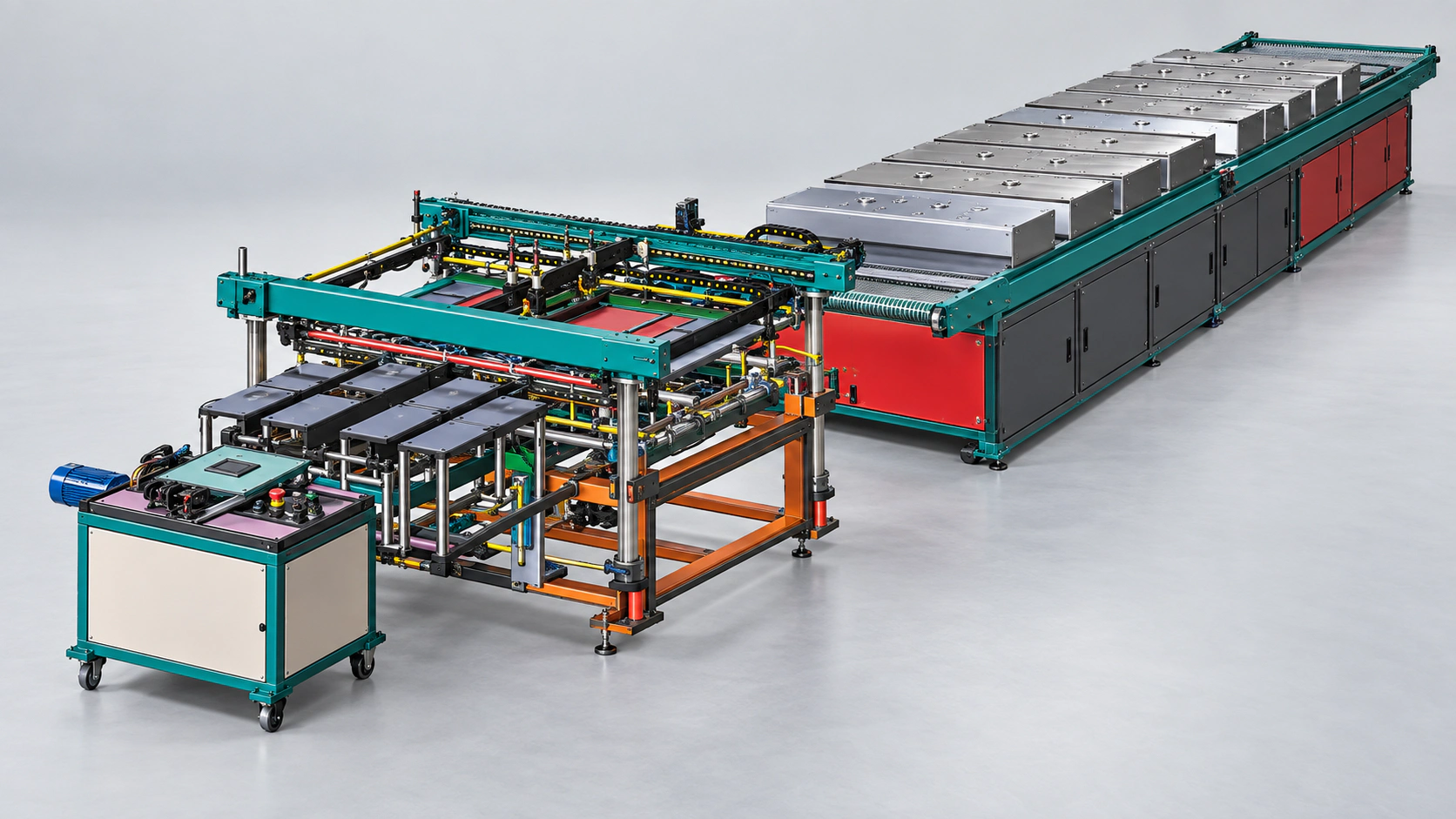

Pillar Screen Printing Machine
A pillar format for larger screen-print jobs.
Pillar screen printing for flat substrate applications.
Configured around your material, process and production needs.
- Format 1
- 36 × 48 in
- Format 2
- 48 × 72 in
- Format 3
- 48 × 96 in
The technology, explained
A pillar format for larger screen-print jobs.
01 — OVERVIEWAPL’s Pillar Screen Printing range is presented in three large-format print areas: 36 × 48, 48 × 72 and 48 × 96 inches. The range gives screen printers a choice of working area for larger flat-format jobs.
Select the format around the actual print area rather than the outer sheet size alone. Screen-frame clearance, material handling, ink choice and the drying arrangement should be confirmed with APL for the intended production application.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Flat-format printing
The range is presented as flat screen printing equipment.
Format-led selection
Choose the model against the image area and the material’s overall dimensions.
Workflow specification
Confirm frame clearance and the necessary feeding and drying equipment with APL.
Product configuration
| Configuration detail | Published product profile |
|---|---|
| Format 1 | 36 × 48 in |
| Format 2 | 48 × 72 in |
| Format 3 | 48 × 96 in |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Large-format flat printing
- Oversize screen-print work
- Panel-format graphics
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Material shape, dimensions and printable area
- 02Artwork detail, colour count and registration needs
- 03Screen dimensions, ink and drying or pretreatment process
