Automatic sheet feeding
A box feeder with vacuum handling supports continuous sheet-fed production.
APL / 29
APPLICATION-LED ENGINEERING01 / 01
Screen printing

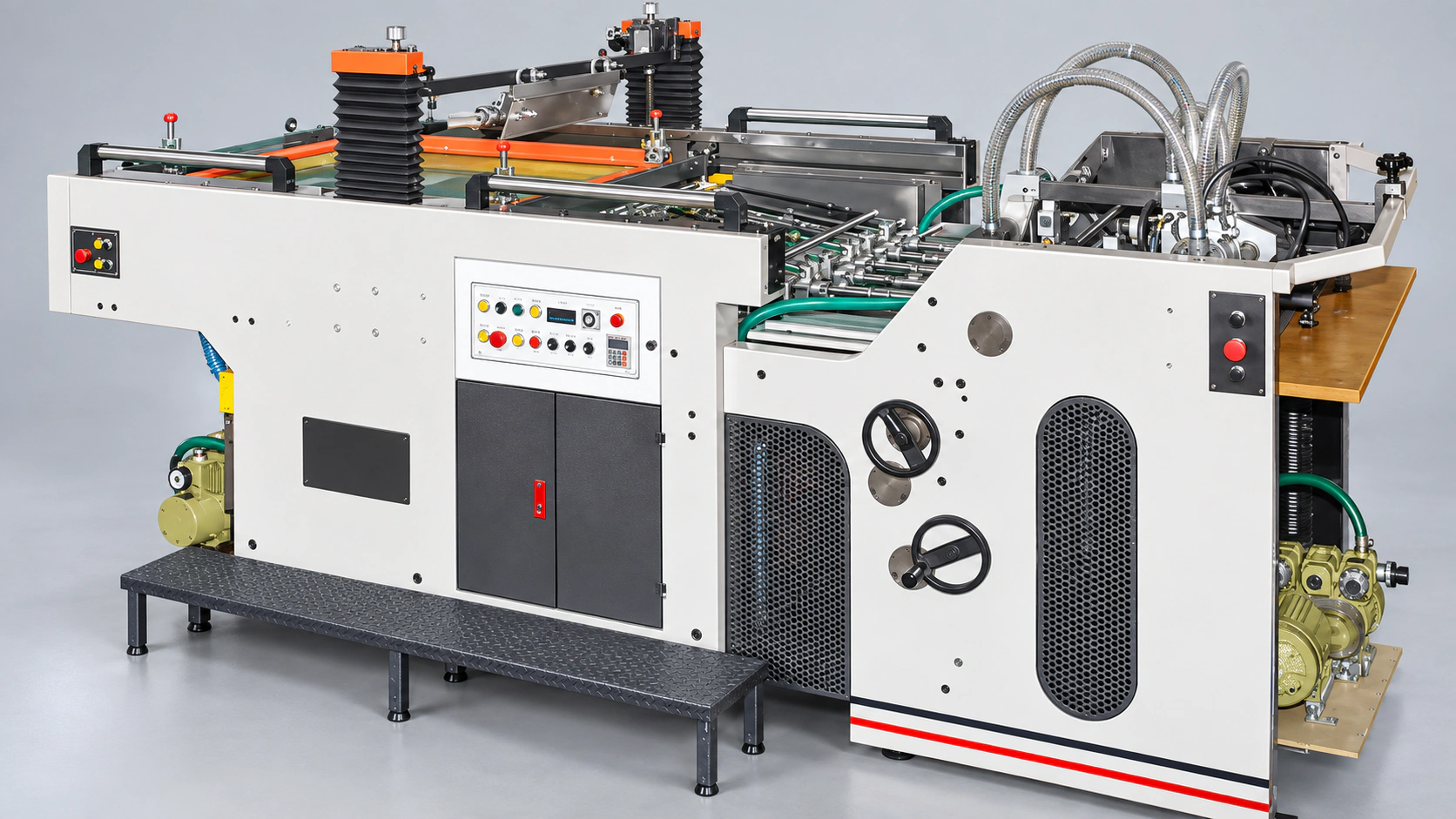

Fully Automatic Screen Printer
Automatic screen printing for demanding finishes.
Automatic feeding and precise registration for screen printing and speciality print finishing.
Configured around your material, process and production needs.
- Print formats
- 20 × 30 / 30 × 40 in
- Published maximum
- 3,600 sheets/hour
- Feeding
- Automatic
The technology, explained
Automatic screen printing for demanding finishes.
01 — OVERVIEWAPL’s fully automatic screen printer combines an automatic feeder with swing- or stop-cylinder configurations. Front and side lays provide registration, while cylinder vacuum supports sheet handling through the print process.
The machine is described for screen printing and speciality finishes including spot UV, cold foil, cast & cure, glitter and scratch-card coating. Published formats include 20 × 30 and 30 × 40 inches, with output up to 3,600 sheets per hour depending on the job. Drying choices include LED UV, conventional UV, hot air and wicket systems.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Registration control
Side and front lays position the sheet before printing.
Screen access
An up/down squeegee and floodbar arrangement supports screen removal and job changes.
Drying choices
Pair the press with the drying technology required by the ink, coating and material.
Product configuration
| Specification | Published range |
|---|---|
| Maximum print areas | 20 × 30 / 30 × 40 in |
| Published output | Up to 3,600 sheets/hour |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Multicolour screen print
- Spot UV and glitter
- Foil and cast & cure
- Scratch-card coating
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Material shape, dimensions and printable area
- 02Artwork detail, colour count and registration needs
- 03Screen dimensions, ink and drying or pretreatment process
