Two-stage process
Sequence the offset and flexo coating units to develop the selected texture.
APL / 28
APPLICATION-LED ENGINEERING01 / 01
UV coating & curing

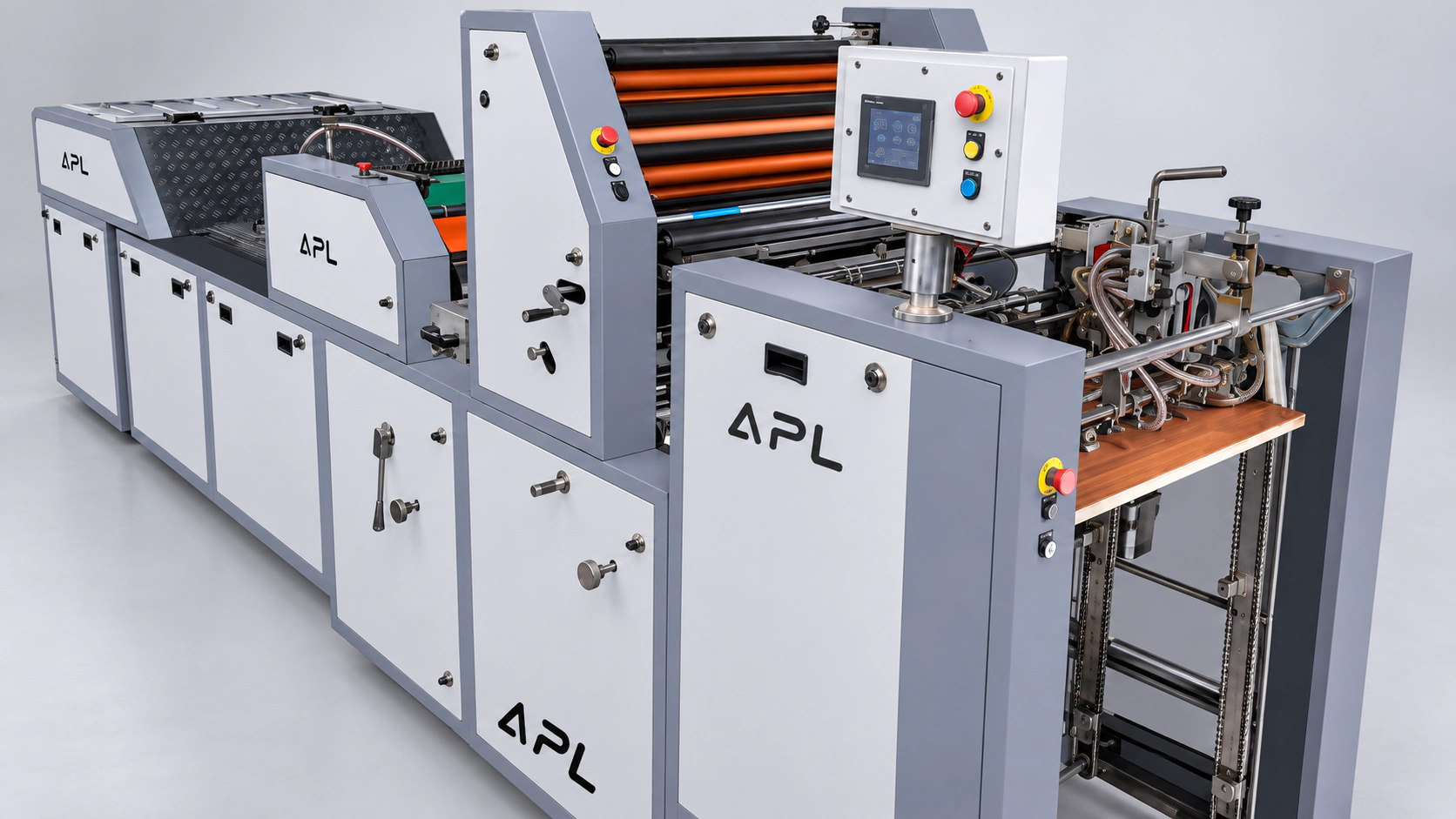

Hybrid UV Drip-off Machine
Build texture in two coordinated stages.
A double station UV system for drip-off and hybrid coating effects.
Configured around your material, process and production needs.
- Stations
- Offset + flexo
- Stock range
- 100–400 gsm
- Published maximum
- 6,000 impressions/hour
The technology, explained
Build texture in two coordinated stages.
01 — OVERVIEWThe Hybrid UV Drip-off Machine combines an offset unit and a flexo unit for offline textured coating. It supports drip-off, spot, selective non-coated areas and full coating on printed substrates.
A water-cooled UV interdeck cassette provides partial curing after the first station. A combination UV, IR and hot-air dryer follows the second station, with an automatic stacker completing the sequence. Two published formats cover different sheet and coating sizes at a stated maximum of 6,000 impressions per hour.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Intermediate curing
A water-cooled UV interdeck cassette follows the first coating station.
Combination drying
The second stage is followed by UV, IR and hot-air drying as appropriate.
Format choice
Published 2030 and 2840 configurations provide different sheet sizes and coating areas.
Reference 1
| Specification | APL UV 2 × 2030 | APL UV 2 × 2840 |
|---|---|---|
| Maximum Sheet size | 530 x 785 mm | 725x 1016 mm |
| Coating Area | 500 x 750 mm | 700 x 1000 mm |
| Paper weight | 100 to 400 gsm | 100 to 400 gsm |
| Power | 35 KW | 50 KW |
| Extra Power for IR Lamp | 12 KW | 16 KW |
| Published speed | 6,000 impressions/hour | 6,000 impressions/hour |
Reference 2
| First station | Intermediate cure | Second station | Final drying |
|---|---|---|---|
| UV Primier | UV Lamp | UV Full or Spot | UV Lamps |
| UV Texture | UV Lamp | UV Spot | UV Lamps |
| UV Printing(on metalized substrate) | UV Lamp | UV Spot or Full | UV Lamps |
| UV Printing | UV Lamps | Aqueous coating | IR Lamps |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Drip-off texture
- Spot UV effects
- Full coating
- UV and aqueous sequences
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Substrate format, basis weight and coating chemistry
- 02Full, spot, texture or other required finishing effect
- 03Target output and existing feeding or drying equipment
