Integrated display
View machine speed, current, sheet count and ready or error information at the controller.
APL / 21
APPLICATION-LED ENGINEERING01 / 01
UV coating & curing

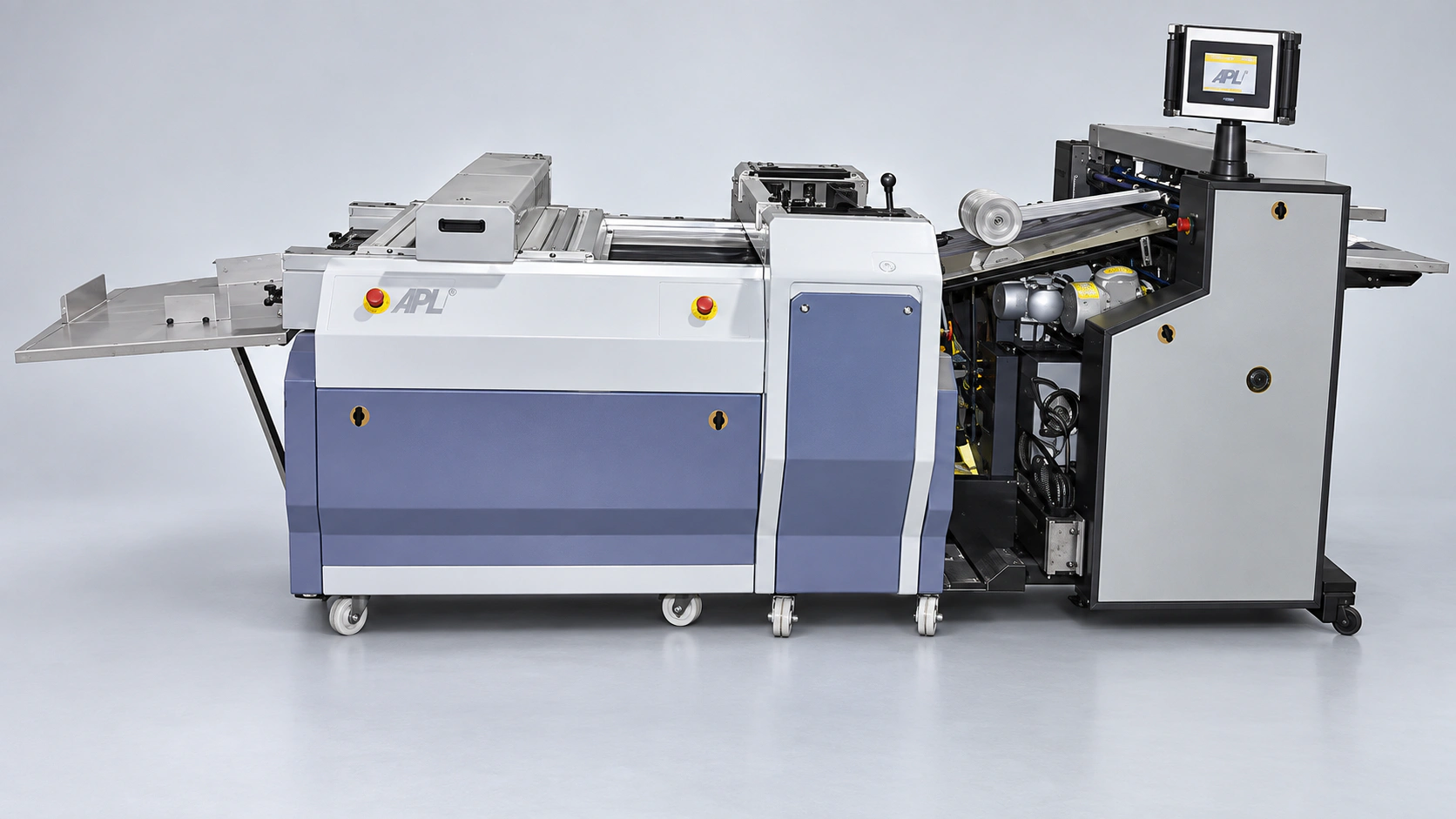

DIGI UV Curing System
A finishing workflow for digital print.
Compact UV curing for digital print finishing.
Configured around your material, process and production needs.
- Job focus
- Digital print coating
- Intensity
- Four selectable levels
- Options
- Texture roller / separate tanks
The technology, explained
A finishing workflow for digital print.
01 — OVERVIEWDIGI UV is a dedicated UV coating and curing machine for digitally printed work, including photo albums. APL also describes its use by offset and screen printers for full-coating UV jobs.
A touch display brings together speed, current, sheet count and lamp information. UV intensity can be selected in stages and synchronised with machine speed. The system includes lamp interlocks for hood opening, paper jams and belt stoppage, plus adjustable varnish flow and optional texture-roller or separate-tank arrangements.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Lamp coordination
The source describes intensity management, hibernation and synchronisation with speed.
Operating interlocks
Lamp, blower and conveyor are interlocked, with lamp shutoff for relevant stoppages.
Coating flexibility
Adjust varnish flow and discuss a texture roller or separate aqueous and UV tanks as options.
Product configuration
| Configuration detail | Published product profile |
|---|---|
| Job focus | Digital print coating |
| Intensity | Four selectable levels |
| Options | Texture roller / separate tanks |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Digital photo albums
- Full UV coating
- Offset-printed sheets
- Screen-printed jobs
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Substrate format, basis weight and coating chemistry
- 02Full, spot, texture or other required finishing effect
- 03Target output and existing feeding or drying equipment
