Three-dimensional exposure
Plan the UV arrangement around the geometry of the coated component.
APL / 22
01 / 02
UV coating & curing

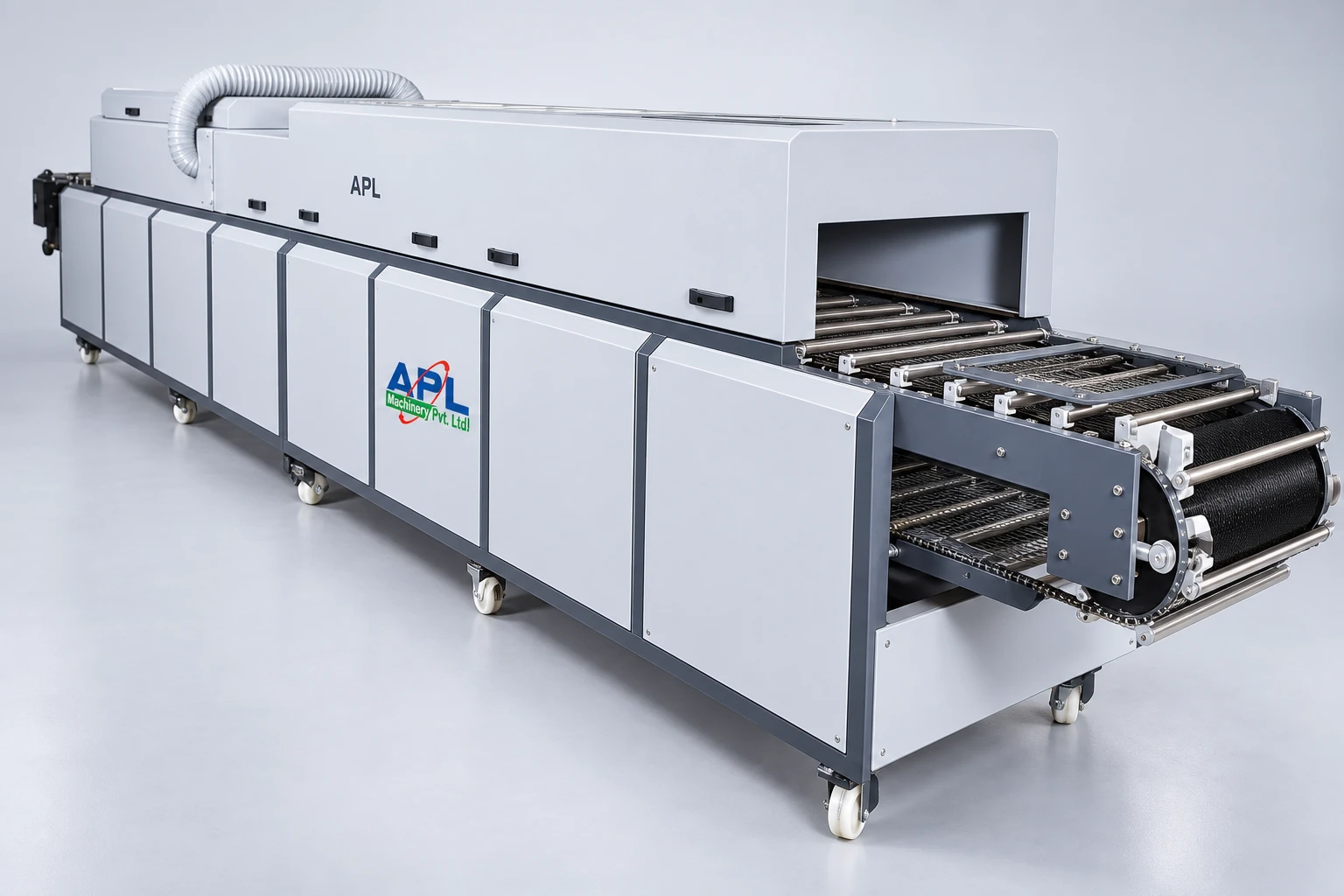

3D UV Curing System
UV curing beyond the flat surface.
UV curing for shaped and three-dimensional components.
Configured around your material, process and production needs.
- Workpieces
- Three-dimensional parts
- Technology
- UV curing
- Configuration
- Application-specific
The technology, explained
UV curing beyond the flat surface.
01 — OVERVIEWThe 3D UV Curing System is designed around coated parts whose geometry requires UV exposure from a suitable arrangement of sources. APL identifies automotive lighting, moulded plastic products, wood components and composite parts as applications.
The system is configured to deliver UV energy to the surfaces that must cure. Part shape, shadowed areas, coating chemistry and the required handling method matter to this selection. Share drawings or samples so that APL can assess the irradiation and transport arrangement.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Automotive applications
The published application list includes lighting assemblies, reflectors and bumper components.
Diverse part materials
APL discusses moulded plastics, wood products and fibreglass composite parts.
Part-led specification
Use the actual coating and component shape to determine the curing and handling setup.
Product configuration
| Configuration detail | Published product profile |
|---|---|
| Workpieces | Three-dimensional parts |
| Technology | UV curing |
| Configuration | Application-specific |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Headlight lenses and reflectors
- Moulded plastic parts
- Wood cabinets and frames
- Helmets and golf balls
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Substrate format, basis weight and coating chemistry
- 02Full, spot, texture or other required finishing effect
- 03Target output and existing feeding or drying equipment
