Gallium UV source
The lamp arrangement is described for white inks and deeper-curing applications.
APL / 44
APPLICATION-LED ENGINEERING01 / 01
Glass finishing

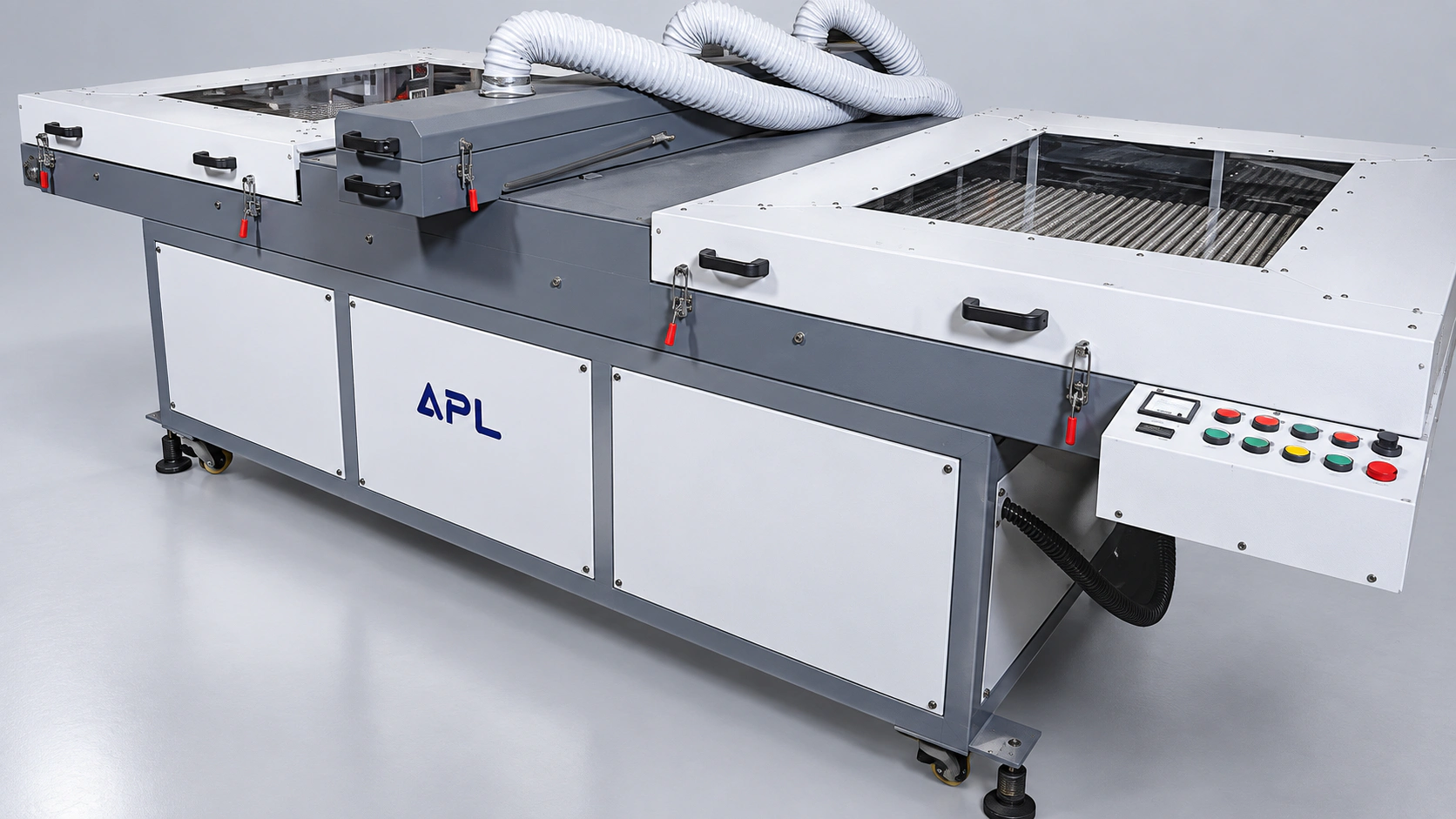

Gallium Lamp UV Curing System
A UV conveyor for deeper-curing applications.
High power UV curing with gallium lamps for industrial applications.
Configured around your material, process and production needs.
- UV type
- Gallium lamp
- Adjustment
- Stepless intensity
- Supply listed
- 415 V AC
The technology, explained
A UV conveyor for deeper-curing applications.
01 — OVERVIEWThe Gallium UV Conveyor is presented for white inks and applications requiring deeper UV curing. The reference configuration combines the lamp, reflector and transformer with blower cooling and AC frequency control of the conveyor.
Stepless intensity adjustment, lamp-current indication and lamp-hour monitoring are described. The ink formulation, film thickness and substrate determine the necessary exposure, so discuss the process with APL before selecting lamp output, conveyor speed and the connected printing equipment.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Intensity adjustment
Stepless output adjustment supports process setup.
Variable-speed transfer
An AC frequency drive controls conveyor movement through the curing section.
Lamp monitoring
The published features include lamp-current and operating-hour indication.
Product configuration
| Configuration detail | Published product profile |
|---|---|
| UV type | Gallium lamp |
| Adjustment | Stepless intensity |
| Supply listed | 415 V AC |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- White-ink curing
- Glass printing lines
- Deep-cure UV applications
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Glass dimensions, thickness and sheet handling
- 02Ink or coating system and intended end use
- 03Printing sequence, drying requirements and line layout
