Automatic centring
Position the glass with the centring arrangement before the print cycle.
APL / 40
APPLICATION-LED ENGINEERING01 / 01
Glass finishing
Auto Centering Glass Screen Printer
Centre the glass. Register the print.
Semi automatic screen printing with automatic glass centering.
Configured around your material, process and production needs.
- Models
- APL 4560 / 5075 / 6090
- Max. print areas
- 450 × 600 to 600 × 900 mm
- Control
- PLC & pneumatic
The technology, explained
Centre the glass. Register the print.
01 — OVERVIEWAPL’s Semi Automatic Centering Glass Screen Printing Machine combines an adjustable printing table with pneumatic controls and linear guides. Automatic centring and micro-registration pins help establish the glass position before printing.
The published APL 4560, 5075 and 6090 models provide maximum printing areas of 450 × 600, 500 × 750 and 600 × 900 mm respectively. A servo-driven take-off arrangement is also described. Select the working area and glass handling around the print image, actual sheet dimensions and required drying sequence.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.

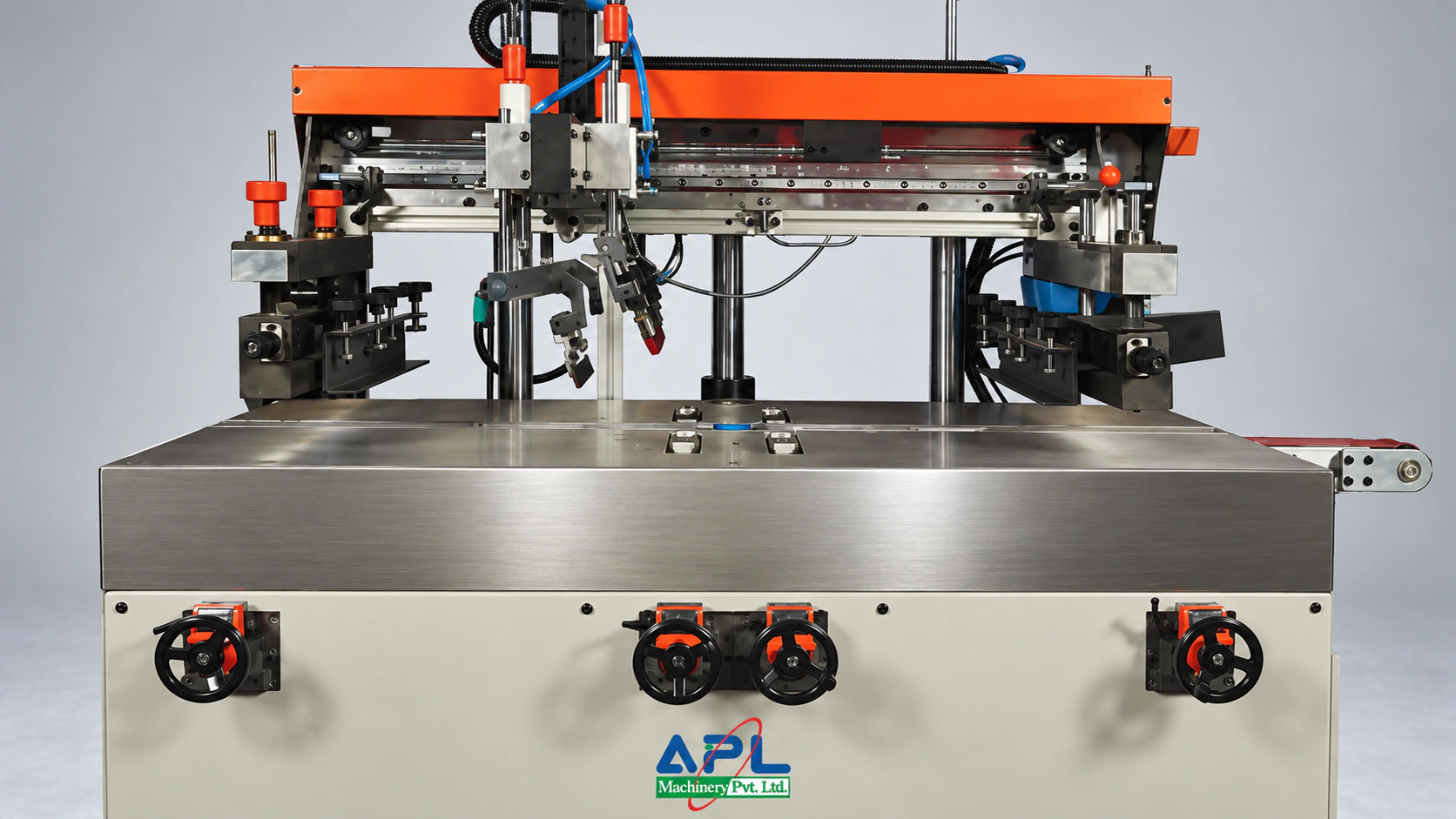

Micro-registration
Fine adjustments and registration pins support job setup.
Guided movement
Linear guides and pneumatic cylinders form part of the published machine design.
Servo take-off
The source describes a servo-operated take-off for transferring the printed glass.
Product configuration
| Model | APL 4560 | APL 5075 | APL 6090 |
|---|---|---|---|
| Max. Printing Size | 450 x 600 mm | 500 x 750 mm | 600 x 900 mm |
| Min. Printing Size | 200 x 200 mm | 200 x 200 mm | 200 x 200 mm |
| Screen Frame Size | 680 x 980 mm | 730 x 1130 mm | 830 x 1280 mm |
| Printing Table Size** | 550 x 800 mm | 600 x 950 mm | 700 x 1100 mm |
| Power (KW) | 2.3 KW – 3.0 KW | 2.3 KW – 3.0 KW | 2.3 KW – 3.0 KW |
| Machine Size** | 950x1200x1700 mm | 950x1900x1800 mm | 1000x2100x1800 mm |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
