Three-stage handling

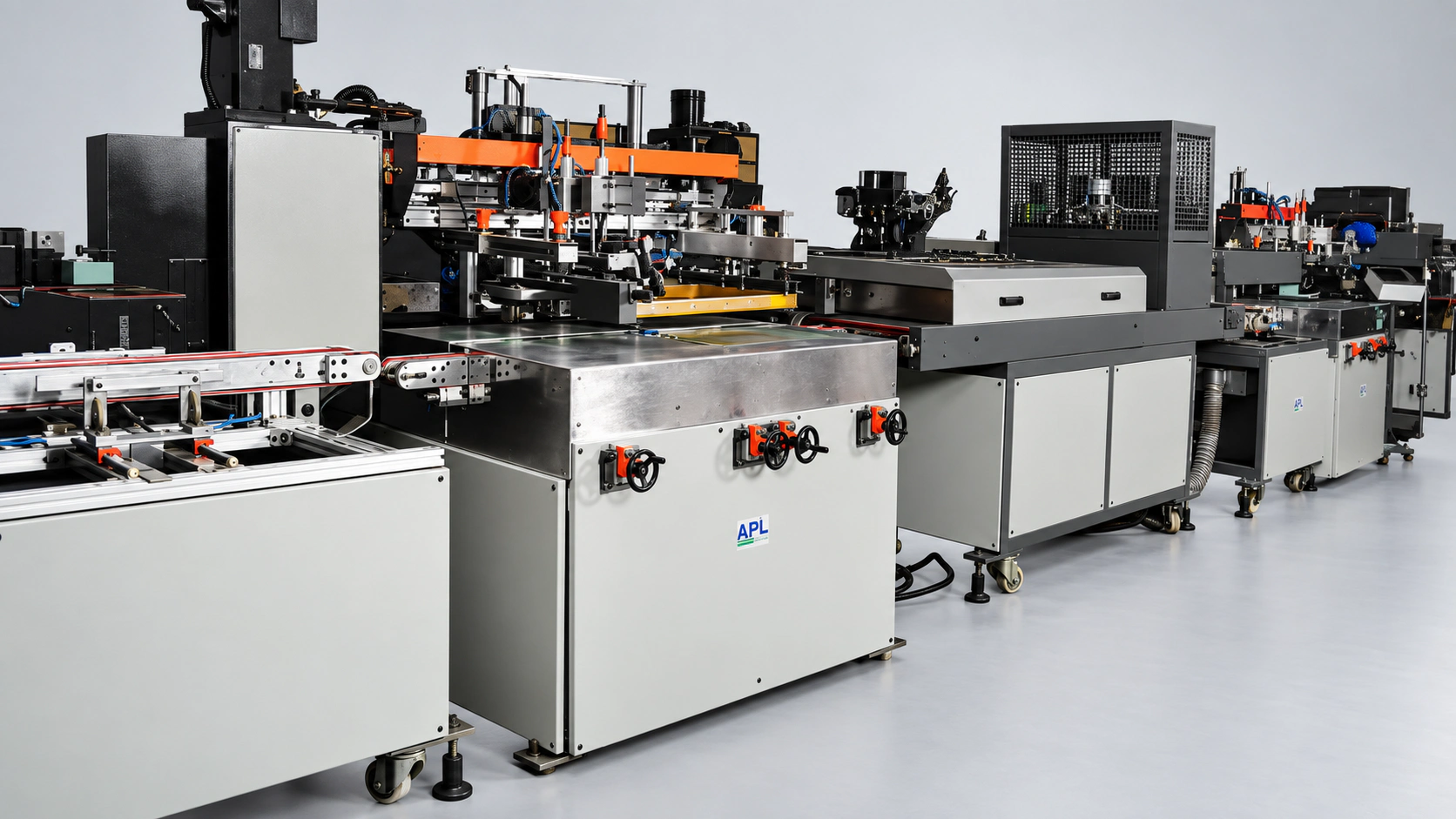

A pre-centring and positioning section feeds the printing section before the glass exits toward the next process.
APL / 39
APPLICATION-LED ENGINEERING01 / 01
Glass finishing
Automatic Glass Screen Printing Line
Precision handling for architectural and automotive glass.
Automatic screen printing with pre-centering and in-machine positioning for automotive and architectural glass.
Configured around your material, process and production needs.
- Print-format range
- 900 × 1,800 to 2,000 × 3,000 mm
- Line sections
- Position / print / exit
- Controls
- PLC & HMI
The technology, explained
Precision handling for architectural and automotive glass.
01 — OVERVIEWThe Automatic Glass Screen Printing Machine combines glass positioning, screen printing and outfeed in a three-section line. APL describes a synchronised vertical screen lift driven through four ball-screw jacks, with synchronous belts handling glass through the process.
The range is presented for architectural glass and automotive windscreens, side windows and rear glass. PLC and HMI controls coordinate the electrical and pneumatic systems. Published maximum print formats extend from 900 × 1,800 mm to 2,000 × 3,000 mm, with the final handling and dryer arrangement selected for the glass.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Synchronised screen lift
Four ball-screw jacks provide a coordinated vertical lift arrangement.
Belt conveyance
Synchronous belts transfer the glass through the machine.
Integrated controls
PLC and HMI operation coordinate the printing and handling sequence.
Product configuration
| Model | Max. Printing Size | Min. Printing Size | Printing Table Size** | Power (KW) | Machine Size** |
|---|---|---|---|---|---|
| APL 90180 | 900 x 1800 mm | 500 x 500 mm | 1550 x 2500 mm | 6-10 KW | 7000x2300x1300 mm |
| APL 130250 | 1300 x 2500 mm | 500 x 500 mm | 1900 x 3200 mm | 6-10 KW | 9000x2700x1300 mm |
| APL 200300 | 2000 x 3000 mm | 500 x 500 mm | 2600 x 3700 mm | 6-10 KW | 10000x3500x1300 mm |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Architectural glass
- Automotive windscreens
- Side and rear vehicle glass
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Glass dimensions, thickness and sheet handling
- 02Ink or coating system and intended end use
- 03Printing sequence, drying requirements and line layout
