UV coating & curing

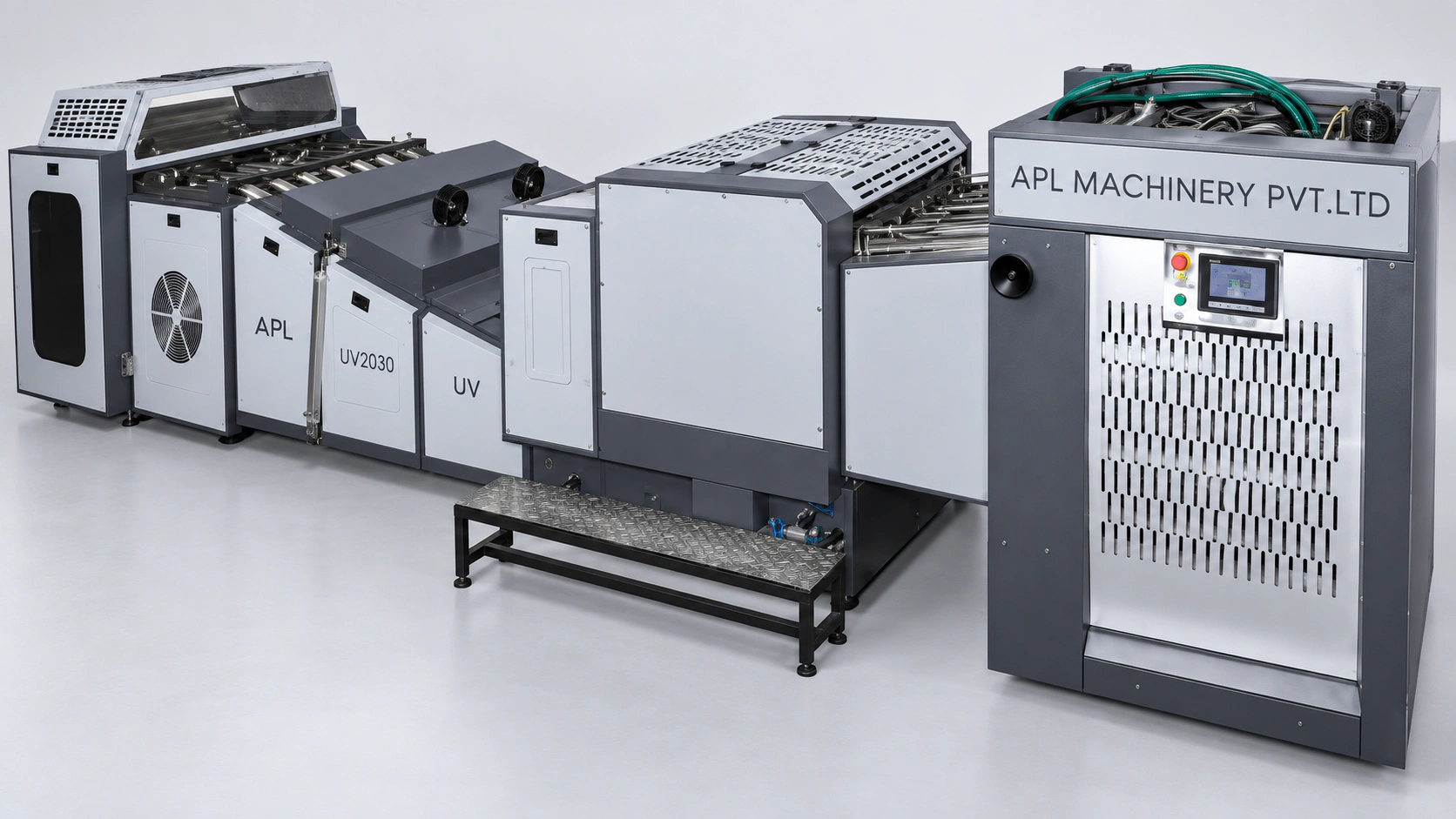

APL-UV 2030 Spot & Full Coater
Spot or full coating. Automatic sheet handling.
Automatic spot and full UV coating for paper and board, with a stream feeder and PLC controls.
Configured around your material, process and production needs.
- Stock range
- 80–450 gsm
- Coating
- Spot & full
- Controls
- PLC touchscreen
The technology, explained
Spot or full coating. Automatic sheet handling.
01 — OVERVIEWThe APL-UV 2030 is an offline coating and curing machine for full and spot UV varnish, aqueous coatings and primers. A stream feeder and registration controls handle paper and board as the job moves through coating and drying.
The published design uses a robust cast-iron frame, hardened gears, vacuum transport and a lamp-cooling arrangement. Anilox coating, adjustable lays and PLC touchscreen controls support setup. Available configurations are described at 6,000 or 10,000 sheets per hour; the quotation confirms the selected model and operating conditions.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Automatic feeding
A stream feeder and adjustable double-sheet detection handle the published stock range.
Anilox coating system
Pneumatic roller control, a doctor-blade assembly and quick roller change support coating setup.
Drying configuration
Discuss UV, IR and hot-air requirements for the chosen varnish or primer.
Product configuration
| Configuration detail | Published product profile |
|---|---|
| Stock range | 80–450 gsm |
| Coating | Spot & full |
| Controls | PLC touchscreen |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Spot UV varnish
- Full-sheet coating
- Aqueous varnish
- Primer application
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Substrate format, basis weight and coating chemistry
- 02Full, spot, texture or other required finishing effect
- 03Target output and existing feeding or drying equipment
