Controlled sheet transfer
Gripper pads and chain delivery move sheets toward the delivery stacker.
APL / 26
APPLICATION-LED ENGINEERING01 / 01
UV coating & curing

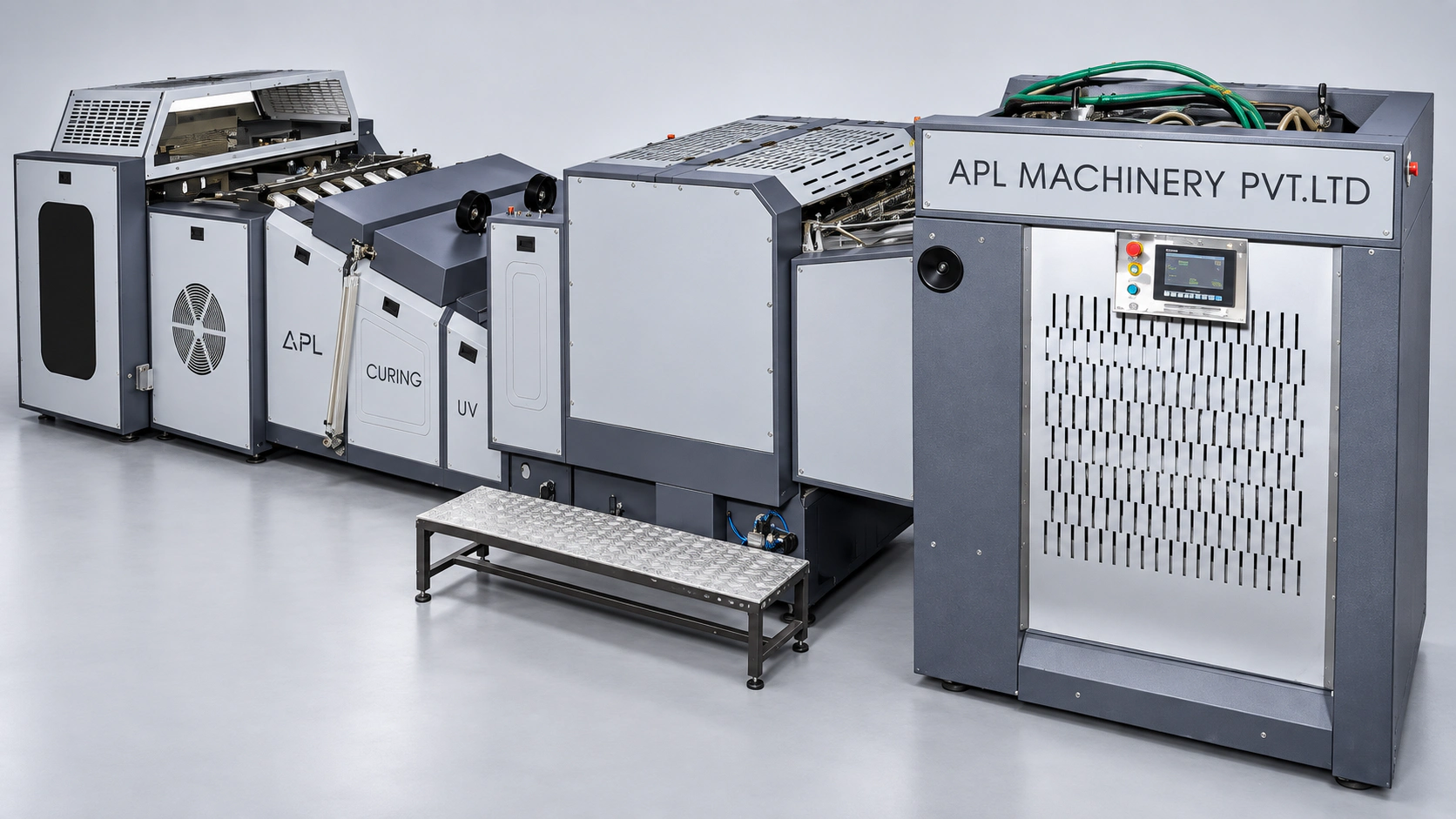

APL-UV 2030 LED UV Gripper Model
Gripper transport for coating and curing.
Automatic LED UV coating and curing with gripper transport for spot and full applications.
Configured around your material, process and production needs.
- Delivery
- Chain & gripper pads
- Coating
- Anilox / doctor blade
- Operation
- PLC & HMI
The technology, explained
Gripper transport for coating and curing.
01 — OVERVIEWThis gripper-delivery coating system brings automatic sheet feeding, spot or full coating, and drying into one production arrangement. APL describes anilox coating with doctor-blade control, registration adjustment and PLC touchscreen operation.
Chain delivery and gripper pads support sheet transport toward the stacker. UV, IR and hot-air components are described across the published configurations, along with a water chiller and cooling blowers. Because the source covers differing lamp, stock and speed arrangements, APL should confirm the exact LED or conventional UV configuration and model specification.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Automatic feed checks
Double-sheet and cross-sheet detection are included among the published features.
Coating setup
An anilox system and plate clamps support suitable blankets or polymer plates.
Dryer selection
Select the UV technology, IR and hot-air modules for the actual coating chemistry.
Product configuration
| Configuration detail | Published product profile |
|---|---|
| Delivery | Chain & gripper pads |
| Coating | Anilox / doctor blade |
| Operation | PLC & HMI |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Spot and full coating
- Paper and board finishing
- UV and aqueous processes
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Substrate format, basis weight and coating chemistry
- 02Full, spot, texture or other required finishing effect
- 03Target output and existing feeding or drying equipment
