Pattern transfer
A design roller transfers wood grain or another repeating design to the surface.
APL / 15
APPLICATION-LED ENGINEERING01 / 01
Wood finishing
Printing Station
Repeat the grain. Define the surface.
A printing station for wood surface production lines.
Configured around your material, process and production needs.
- Printing method
- Design roller
- Designs
- Wood grain / repeat pattern
- Role
- Surface decoration
The technology, explained
Repeat the grain. Define the surface.

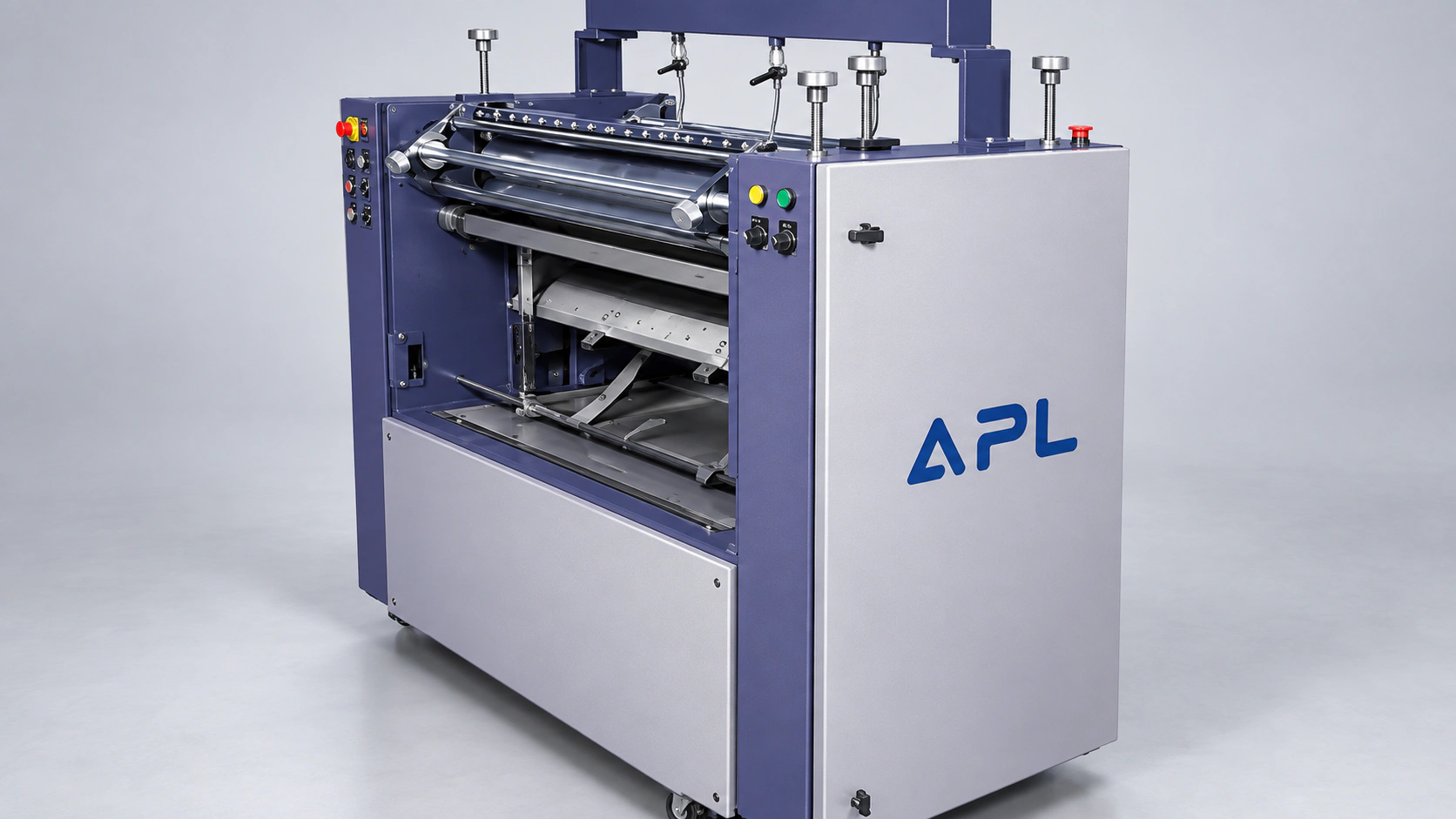

01 — OVERVIEWThe APL Printing Station uses a design roller to print wood grain or another continuous pattern. It is a dedicated decoration stage for a board or wood-surface production workflow.
The published component schedule lists a roller motor and blower. The chosen design roller determines the repeated pattern, so discuss the decorative design, panel format and coating sequence with APL when planning the printing station.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Dedicated print stage
Place decoration at the appropriate point in the panel production workflow.
Roller drive
The published machine arrangement includes a driven roller.
Design planning
Match the roller design and repeat to the intended finished panel appearance.
Product configuration
| Configuration detail | Published product profile |
|---|---|
| Printing method | Design roller |
| Designs | Wood grain / repeat pattern |
| Role | Surface decoration |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Wood-grain printing
- Continuous decorative patterns
- Board finishing lines
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Board dimensions, thickness and handling method
- 02Coating or adhesive system and target surface finish
- 03Line speed, transfer height and available floor space
