Piezo printhead
The published flatbed series uses piezo printhead technology with software voltage control.
APL / 14
APPLICATION-LED ENGINEERING01 / 01
Wood finishing

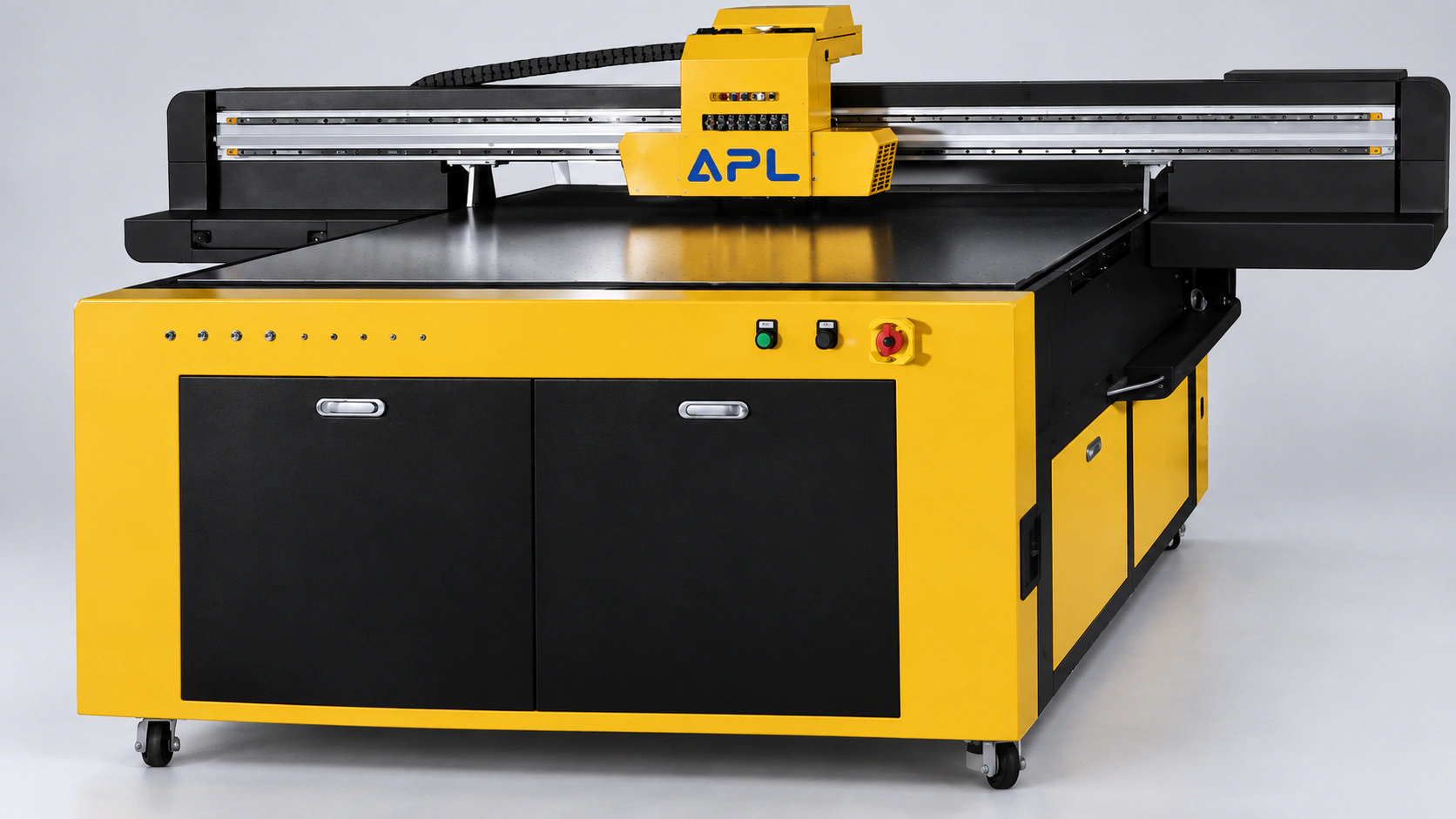

Digital Flatbed Printer
Digital decoration for flat surfaces.
Digital printing on flat boards and rigid substrates.
Configured around your material, process and production needs.
- Ink supply
- 1,000 ml CISS
- Curing
- Water-cooled LED UV
- Environment
- 20–28°C
The technology, explained
Digital decoration for flat surfaces.
01 — OVERVIEWAPL’s UV Flatbed Printer Series combines a piezo printhead, UV ink and a water-cooled LED UV drying system. It is presented within the wood-finishing range for digital decoration of flat substrates.
The reference configuration lists a 1,000 ml continuous ink supply and software-controlled printhead voltage. Common artwork formats include TIFF, BMP, PDF, EPS and JPEG. Confirm the bed format, material thickness and ink configuration for your particular board or panel application.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Continuous ink supply
A 1,000 ml CISS arrangement supplies UV ink to the printing system.
Artwork compatibility
Published file formats include TIFF, BMP, PDF, EPS and JPEG.
LED UV drying
A water-cooled LED UV lamp cures the ink within the printer’s process.
Product configuration
| Specification | Reference configuration |
|---|---|
| Printhead technology | Piezo |
| Ink | UV ink |
| Ink supply | 1,000 ml CISS |
| Drying system | Water-cooled LED UV |
| Artwork formats | TIFF, BMP, PDF, EPS, JPEG |
| Operating temperature | 20–28°C |
| Operating humidity | 20–60% RH |
| Electrical supply | AC 220 V, 50 Hz |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Flat board decoration
- Rigid surface printing
- Digital panel designs
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Board dimensions, thickness and handling method
- 02Coating or adhesive system and target surface finish
- 03Line speed, transfer height and available floor space
