Single-pass digital printing
Produce digital artwork in a continuous web workflow using piezo inkjet technology.
APL / 48
APPLICATION-LED ENGINEERING01 / 01
Digital printing & foiling

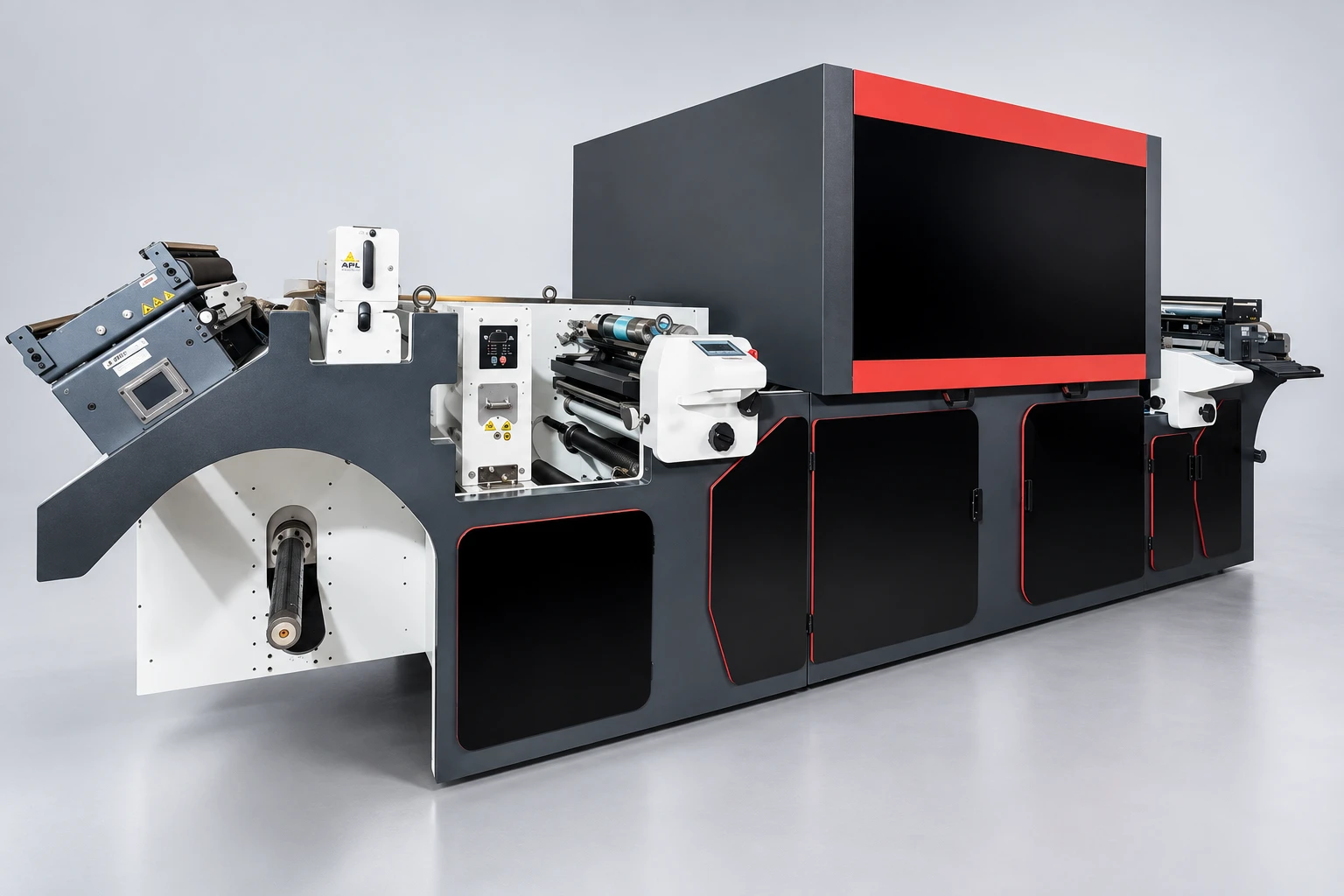

APL QuantumJet
Digital flexibility. Inline finishing capability.
Single pass digital printing for packaging, labels and a wide range of substrates.
Configured around your material, process and production needs.
- Max. web width
- 510 mm
- Digital print width
- 470 mm
- Max. roll diameter
- 800 mm
The technology, explained
Digital flexibility. Inline finishing capability.
01 — OVERVIEWQuantumJet is APL’s industrial single-pass digital printing platform. The published configuration combines a piezo inkjet system with a roll-fed production arrangement and flexo capability, bringing digital printing and selected inline processes into one workflow.
The reference lists a 510 mm maximum web width and 470 mm printing width, with four servo motors and web-alignment controls. APL identifies paper, board up to 300 gsm, PP, PET and metallised materials among the applications. Ink, treatment and finishing modules should be matched to each substrate.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Inline flexo capability
The published platform includes a flexo printing width of 510 mm.
Web control
Four servo motors and a BST or E+L web-alignment arrangement are listed.
Material-led configuration
Discuss ink, pretreatment and finishing requirements for the proposed paper, board or film.
Product configuration
| Specification | Value |
|---|---|
| Maximum web width | 510 mm |
| Maximum print width | 470 mm |
| Flexo station | 510 mm |
| Maximum unwind / rewind diameter | 800 mm |
| Drive | 4 servo drives |
| Air requirement | 21 CFM at 6 bar |
| Power supply | 380–415 V, 3 phase, 50 Hz |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Labels and packaging
- Paper and board
- PP and PET film
- Metallised substrates
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Substrate and sheet or roll format
- 02Artwork, decoration process and finishing requirements
- 03Target output and the modules needed for your workflow
Product resources
Let’s work through your application.
For a configuration matched to your material and production needs, request the current technical details directly from APL.
