Anilox control
Automatic anilox on/off operation coordinates coating application.
APL / 54
01 / 02
Speciality equipment
Glitter Coating Machine
Glitter coating, continuously applied.
Glitter coating for decorative print effects.
Configured around your material, process and production needs.
- Max. feed width
- 1,016 mm / 40 in
- Coating width
- 966 mm / 38 in
- Published speed
- 20 m / min
The technology, explained
Glitter coating, continuously applied.

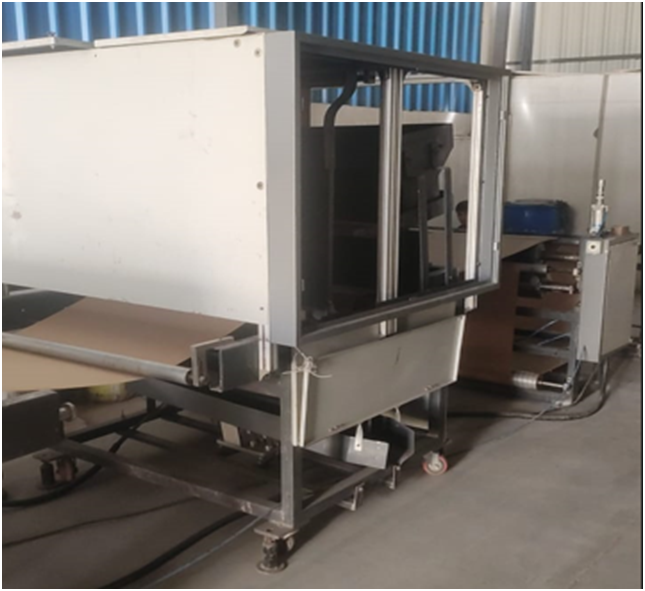

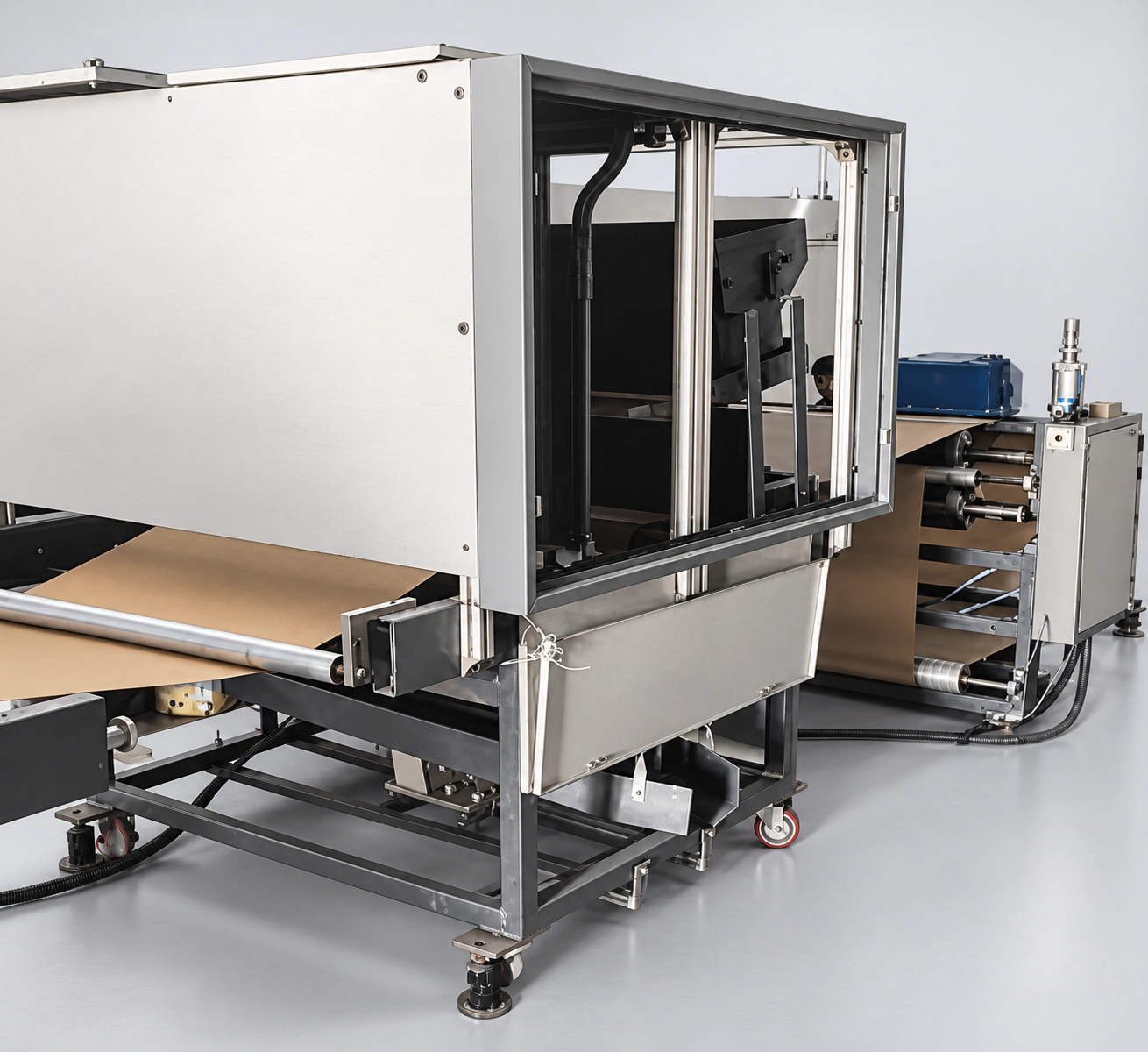

01 — OVERVIEWAPL’s Roll-to-Roll Glitter Coating Machine applies decorative glitter in a continuous web workflow. The reference configuration lists a 1,016 mm feed width, 966 mm coating width and a published speed of 20 metres per minute.
Automatic anilox engagement, web guidance and tension control coordinate coating and transport. The listed applications include paper, plastic film, EVA foam, ribbon and satin. The published paper-weight range is 70–150 gsm; other materials need a separate compatibility review with APL.
Inside the machine
Designed around
the details.
Explore the capabilities that shape this machine’s role on your production floor.
Web guidance
A sensor-based web guide helps maintain the material path.
Tension management
Automatic tension control and a mechanical brake form part of the reference setup.
Heated drying
Finned heaters provide the listed drying arrangement after coating.
Product configuration
| Specification | Reference configuration |
|---|---|
| Max. Paper Feeding Width | 1016mm/40 inch |
| Max. Printing Width | 966mm/38 inch |
| Max. Printing Speed | 20m/min |
| Published paper weight | 70-150 GSM |
| Adhesive Coating | Anilox Roller |
| Coating Impression | Automatic on-off |
| Web Alignment | Web Guide System (Sensor Control) |
| Un -Rewind Type | Auto Tension Control / Mechanical Brake |
| Un -Rewind Shaft | Air Shaft (Pneumatic) |
| Un -Rewind Roll Diameter | 800 mm |
| Pneumatic Pressure | 5/6 bar |
| Weight Approx. | 3000 kgs |
| Dryer/Heater | Finned Type |
| Dimensions (WxLxH)- | 1524 x 15240 x 1800 mm |
| Power Supply | 3 Phase/ 415V/ 50Hz |
| Total Power | 30 KW |
Published output figures refer to reference configurations. Actual results depend on material, artwork, process settings and selected options.
THE MATERIAL IS THE STARTING POINTApplication possibilities
Where this
technology fits.
- Glitter paper
- Plastic films
- EVA foam
- Decorative ribbons and satin
Material study shown for illustration. Discuss the actual substrate and intended finish with APL.
Plan your next step
A better brief.
A better fit.
Bring these details to your first conversation with the APL team.
- 01Material specification and intended final product
- 02Required coating, decoration or lamination process
- 03Working width, throughput and handling arrangement
Product resources
Let’s work through your application.
For a configuration matched to your material and production needs, request the current technical details directly from APL.
